MS802-4 4 Pole 0.75kw Aluminum Three Phase Motor IP55

Product Categories
Fuan Zhongzhi Pump Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

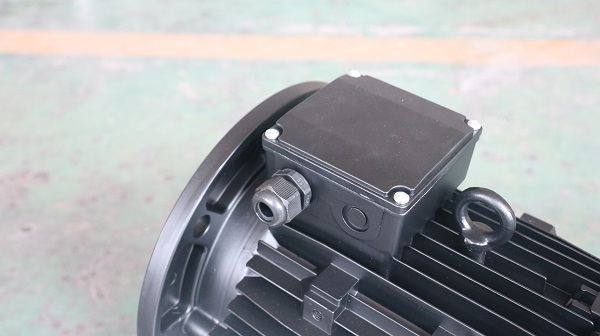

MS802-4 4 Pole 0.75kw Aluminum Three Phase Motor IP55

Brand Name : ZOZHI

Model Number : MS802-4

Certification : CE,ISO

Place of Origin : FUAN CHINA

MOQ : 10pcs

Price : 46.5-53.8

Payment Terms : L/C, T/T

Supply Ability : 10000pcs/month

Delivery Time : 25 working days after received your payment

Packaging Details : Packed in cartons,veneer case or wooden case.

Product Name : 3 Phase Induction Motor

Application : Drivng

Power : 0.75kw

Pole : 4

Phase : Three phase

Housing : Aluminum

Insulation Class : B,F

Protection : IP44 / IP54

Rated voltage : 380V

Duty : S1(continuous)

Contact Now

MS802-4 0.75kw 4 pole MS series Aluminum housing three-phase motor

3 Phase Induction Motor

Products Description

MS series aluminum electric motor is a TEFC squirrel cage Three-phase AC induction motor. The body is die-casting of aluminum alloy. It is popular in many developed countries because of its lower pollution, and it is considered a green product in the electric motor industry. The electric motor has the advantage of high-efficiency energy-saving. high starting moment, good performance.light-weight,attractive appearance,high protection class. run steadily. Removable feet, variable fixing methods, etc., lt is widely used in normal places, and precision machinery without special requirements and are usually applied to a speed reducer, blower, water pump, air compressor, pipelining, packing industry, food machinery, and woodworker, etc.

Technical Data :

Centre height of frame size: 56~132mm Power range: 0.09~5.5kW

Rated voltage:380V

Rated frequency: 50Hz or 60Hz

Protection class: IP55

Insulation class: F/H

Duty type: S1

Technical data

Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

 Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In
HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5

MS802-4 4 Pole 0.75kw Aluminum Three Phase Motor IP55

MS802-4 4 Pole 0.75kw Aluminum Three Phase Motor IP55

MS802-4 4 Pole 0.75kw Aluminum Three Phase Motor IP55

MS802-4 4 Pole 0.75kw Aluminum Three Phase Motor IP55

Reviews from the client:

MS802-4 4 Pole 0.75kw Aluminum Three Phase Motor IP55

Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

MS802-4 4 Pole 0.75kw Aluminum Three Phase Motor IP55

​

MS802-4 4 Pole 0.75kw Aluminum Three Phase Motor IP55

MS802-4 4 Pole 0.75kw Aluminum Three Phase Motor IP55

MS802-4 4 Pole 0.75kw Aluminum Three Phase Motor IP55

MS802-4 4 Pole 0.75kw Aluminum Three Phase Motor IP55

MS802-4 4 Pole 0.75kw Aluminum Three Phase Motor IP55

INFORMATION

Motor bearing heating analysis

(1) improper bearing coordination leads to the breakdown of the motor bearing system quickly.

(2) currently causes ablation of bearing system components and heating of bearing parts, resulting in a severe failure of the bearing system.

(3) improper lubrication system leads to bearing heating due to poor lubrication

(4) bearing heating caused by motor temperature rise or operating environment temperature.
