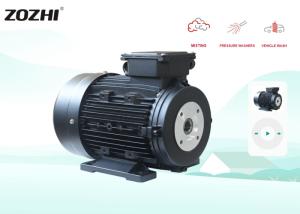

400 Volts 25hp 18.5kw Hollow Shaft Motor Three Phase 1400rpm IP55 For HAWK Pump

Product Categories
Fuan Zhongzhi Pump Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

400 Volts 25hp 18.5kw Hollow Shaft Motor Three Phase 1400rpm IP55 For HAWK Pump

  • 1
  • 2

Brand Name : ZOZHI

Model Number : 160M2-4

Certification : ISO

Place of Origin : China

MOQ : 1pc

Price : negotiated

Payment Terms : T/T, L/C

Supply Ability : 10000pcs/month

Delivery Time : 25 working days after received your payment

Packaging Details : Packed in cartons,veneer case or wooden case.

Product Name : Hollow Shaft Motor

Voltage : 230/400V

Phase : Three phase

Output : 18.5kw/25hp

Speed : 1400rpm

Shaft : 24mm

Frame : 160

Material : Die Cast Aluminum

Pole : 4

Insulation : Class F

Protection : IP55

Installation : B3

IEC Standard : IE1

Application : cleaning machine / pressure washer machine

Contact Now

400 Volts 25hp 18.5kw Hollow Shaft Motor Three Phase 1400rpm IP55 For HAWK Pump

Hollow Shaft Motor

squirrel-cage design

cast-aluminum housing

Dustproof and waterproof

low noise

low vibration

energy saving

long service life

400V/50HZ three-phase

25hp/18.5kw 1400rpm 4pole B3 foot mount

Hollow shaft electric motor

50Hz Electric Motor - B3 - Hollow Shaft - Three Phase - 4Pole (1400 RPM)

FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F. V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.8 78 400 7.4
100L1-4 2.2 3 1400 0.8 81 400 5.1
100L2-4 3 4 1410 0.8 81 400 6.9
100L3-4 4 5.5 1420 0.8 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.8 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.8 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.9 85 400 17.8
132M2-4 11 15 1430 0.9 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34

400 Volts 25hp 18.5kw Hollow Shaft Motor Three Phase 1400rpm IP55 For HAWK Pump
FRAME FLANGE FRAME NO APPLICABLE PUMP MODEL
AR PUMP HAWK PUMP INTERPUMP
71 90mm 71 X.M. - R.K. - RG
90 61/90mm 90L XM - RK - RG Series44/49/50/51/58/60/63
100 61/90mm 100L XM - RK - RW - XW - RG RC - RR - RS NHD -NHDP -NMT Series44/49/50/51/58/ 60/ 63
112 61/90mm 112M XM - RK - RW - XW - RG RC - RR - RS NHD - NHDP -NMT -NPM Series 47/59/66
132 61/90mm 132S RK - XW - RG RR
132 61/90mm 132M RK - XW - XWL - SXW - SHP - RG NMT -NPM -PXI - NLTI -XLTI
160 61mm 160M X.W. - XWL - SWL - SHP

Application

400 Volts 25hp 18.5kw Hollow Shaft Motor Three Phase 1400rpm IP55 For HAWK Pump
