4 Pole Three Phase Asynchronous Motor , Capacitor Run Induction Motor Y2 0.12-315KW

Brand Name : ZOZHI

Model Number : Y2-160M-4

Certification : ISO

Place of Origin : China

MOQ : 1pc

Price : negotiated

Payment Terms : T/T, L/C

Supply Ability : 10000pcs/month

Delivery Time : 25 working days after received your payment

Packaging Details : Packed in cartons,veneer case or wooden cases

Product Name : 3 Phase Induction Motor

Application : Biomass Pellet Machine

Power : 11KW /15HP

Pole : 4

Phase : 3 Phase

Insulation Classtion Class : F

Voltage : 380v

Type : Asynchronous Motor

Contact Now

Y2 0.12-315KW Three-Phase Electric Motor For Biomass Pellet Machine

3 Phase Induction Motor

Y2 Series Three Phase asynchronous motor is the latest three-phase asynchronous motor developed by finalizing the advanced experiences from international developed countries. Various properties have reached the international advanced standard in1990. The performing standards are conformed to JB/T8680-2008<Y2 series (IP54) three-phase asynchronous motor's technical conditions>.

For the Y2 series (IP54) three-phase asynchronous motor, the frame number is 63-315, total of14 frame numbers. The electrode reaches 2,4,6,8,10, Power from 0.12-315kw.

At present, we produced 82 specifications, from frame number 63 to 280, the number of electrode range include 2,4,6,8 and Power from 0.12-200kw.

Data

380V 5OHz Synchronous Speed 1500r/min (4 Poles)
Model Output Current Speed EFF(%) Power Factor EFF(%) Power Factor EFF(%) Power Factor Tstart/Tn Ist/In Tmax/Tn
HP KW (A) (r/min)
Y2-631-4 0.16 0.12 0.42 1310 57 0.72 56.1 0.69 51.9 0.55 2.1 5.2 2.2
Y2-632-4 0.25 0.18 0.62 1310 60 0.73 58.5 0.7 56.7 0.59 2.1 5.2 2.2
Y2-711-4 0.34 0.25 0.79 1330 65 0.74 62.4 0.73 59.3 0.59 2.1 5.2 2.2
Y2-712-4 0.5 0.37 1.12 1330 67 0.75 65.3 0.74 60.1 0.63 2.1 5.2 2.2
Y2-801-4 0.75 0.55 1.57 1390 71 0.75 69.2 0.74 68.6 0.64 2.4 5.2 2.3
Y2-802-4 1 0.75 2.03 1390 73 0.76 71.7 0.75 70 0.67 2.3 6 2.3
Y2-90S-4 1.5 1.1 2.89 1400 75 0.77 73.1 0.75 72 0.67 2.3 6 2.3
Y2-90L-4 2 1.5 3.7 1400 78 0.79 76.1 0.76 74.1 0.69 2.3 6 2.3
Y2-100L1-4 3 2.2 5.16 1430 80 0.81 78 0.79 75.5 0.69 2.3 7 2.3
Y2-100L2-4 4 3 6.78 1430 82 0.82 79.9 0.78 78.5 0.7 2.3 7 2.3
Y2-112M-4 5.5 4 8.8 1440 84 0.82 82.9 0.79 81.1 0.7 2.3 7 2.3
Y2-132S-4 7.5 5.5 11.7 1440 85 0.83 83.8 0.81 82.2 0.73 2.3 7 2.3
Y2-132M-4 10 7.5 15.6 1440 87 0.84 85.6 0.82 83.6 0.74 2.3 7 2.3
Y2-160M-4 15 11 22.3 1460 88 0.84 86.8 0.83 85.9 0.75 2.2 7.5 2.3
Y2-160L-4 20 15 30.1 1460 89 0.85 88.9 0.83 88.5 0.75 2.2 7.5 2.3
Y2-180M-4 25 18.5 36.5 1470 90.5 0.86 90 0.82 89.5 0.77 2.2 7.5 2.3
Y2-180L-4 30 22 43.2 1470 91 0.86 90.2 0.84 89.9 0.76 2.2 7.2 2.3
Y2-200L-4 40 30 57.6 1470 92 0.86 91.5 0.84 90.8 0.77 2.2 7.2 2.3
Y2-225S-4 50 37 69.9 1480 92.5 0.87 91.9 0.87 90.3 0.8 2.2 7.2 2.3
Y2-225M-4 60 45 84.7 1480 92.8 0.87 92.4 0.87 90.9 0.8 2.2 7.2 2.3
Y2-250M-4 75 55 103 1480 93 0.87 92.7 0.89 91.2 0.81 2.2 7.2 2.3
Y2-280S-4 100 75 140 1480 93.8 0.87 92.4 0.86 91.6 0.8 2.2 7.2 2.3
Y2-280M-4 125 90 167 1490 94.2 0.87 93 0.86 92.8 0.78 2.2 7.2 2.3
Y2-315S-4 150 110 201 1490 94.5 0.88 93.3 0.87 92.8 0.81 2.1 6.9 2.2
Y2-315M-4 180 132 240 1490 94.8 0.88 93.8 0.87 93 0.81 2.1 6.9 2.2
Y2-315L1-4 220 160 287 1490 94.9 0.89 93.9 0.88 93.1 0.81 2.1 6.9 2.2
Y2-315L2-4 270 200 359 1490 95 0.89 94.1 0.88 93.8 0.82 2.1 6.9 2.2
Y2-355M-4 340 250 443 1485 95.3 0.9 94.3 0.88 94 0.83 2.1 6.9 2.2
Y2-355L-4 430 315 556 1485 95.6 0.9 94.5 0.89 94 0.84 2.1 6.9 2.2

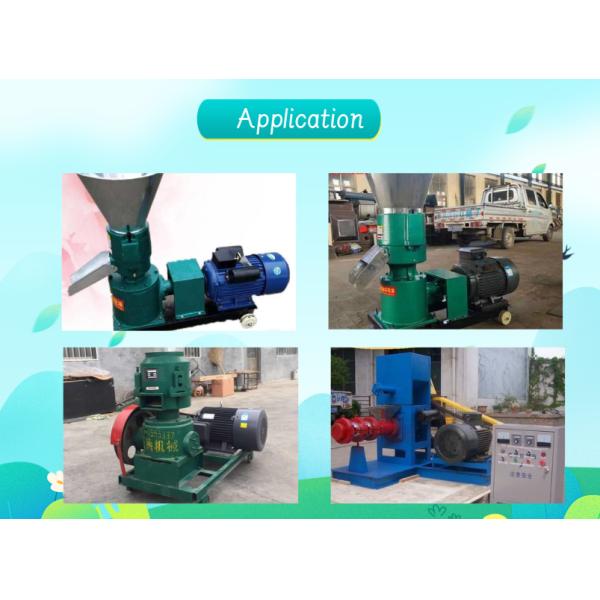

Application

4 Pole Three Phase Asynchronous Motor , Capacitor Run Induction Motor Y2 0.12-315KW

Biomass Pellet Machine is mainly suitable for medium and small-scale breeding professional households to process and produce various livestock and poultry and aquatic pellet feed, which can reduce the breeding cost. It can be used to raise rabbits, chickens, ducks, geese, fish, pigs, marine products, etc.


Product Tags:

3 phase asynchronous motor



squirrel cage electric motor


Wholesale 4 Pole Three Phase Asynchronous Motor , Capacitor Run Induction Motor Y2 0.12-315KW from china suppliers
