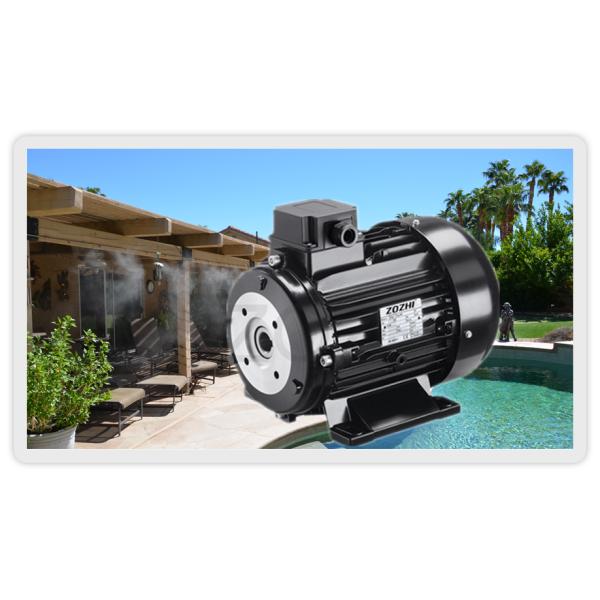

3Kw Single Phase Induction Motor 1400rpm For Misting System NHD120 Bar Pump
Hollow Shaft Motor
Operating conditions:
| Output | 3kw/4HP | Model | HS112M1-4 |
| Duty | S1 | Speed | 1400RPM |
| Ambient temperature | -15℃≤θ≤60℃ | Rated voltage | 230V |
| Frequency | 50HZ | Protection class | IP55/54 |
| Phase | Single | Pole | 4 |
| Insulation Class | F | Efficiency | IE3/IE2 |
For Misting System
Hollow-shaft coupling for direct mounting to the NHD 120 bar pump, in just a few minutes
This model is a perfect choice for fitting on professional high-pressure washers powered by an NHD 120bar pump or for misting systems.
Data
| Single-Phase 4 Poles 1500Rpm 50Hz |
| FRAME | POWER | RPM | COSφ | EFF.% | CAPACITOR | VOLT | AMPERE |
| KW | H.P. | P.F. | | U.F. | V | A |
| 711-4 | 0.25 | 0.35 | 1360 | 0.91 | 57 | 10 | 230 | 2.1 |
| 712-4 | 0.37 | 0.5 | 1380 | 0.94 | 65 | 16 | 230 | 2.6 |
| 90L1-4 | 1.5 | 2 | 1400 | 0.98 | 70 | 45 | 230 | 9.5 |
| 100L1-4 | 1.85 | 2.5 | 1390 | 0.97 | 68 | 55 | 230 | 12.2 |
| 100L2-4 | 2.2 | 3 | 1350 | 0.99 | 74 | 70 | 230 | 13.1 |
| 100L3-4 | 2.6 | 3.5 | 1350 | 0.96 | 74 | 80 | 230 | 17.5 |
| 112M1-4 | 3 | 4 | 1400 | 0.98 | 74 | 80 | 230 | 18.1 |
| 112M2-4 | 3.7 | 5 | 1410 | 0.96 | 76 | 100 | 230 | 22 |
What is high-pressure spray dust reduction equipment?
A high-pressure spray dust reduction system is a new dust reduction system. The principle is to use a high-pressure pump to pressurize water to 50-70 kg and send it to a high-pressure nozzle for atomization through a high-pressure pipeline to form a flying water mist. Since the water mist particles are micron-sized, they are tiny. Therefore, they can be absorbed into the air Impurities, create sound and fresh air, and achieve multiple effects such as dust reduction and humidification.
This system has a dust-reducing effect for textiles, ceramics, and other workshops and can also be used in squares, pedestrian streets, and other places. The potion is more versatile for spraying, disinfecting, and cleaning. Do more with one hand and use it economically. With low system cost, quiet operation and maintenance, and economical and practical, the control system can realize unmanned automatic control.
