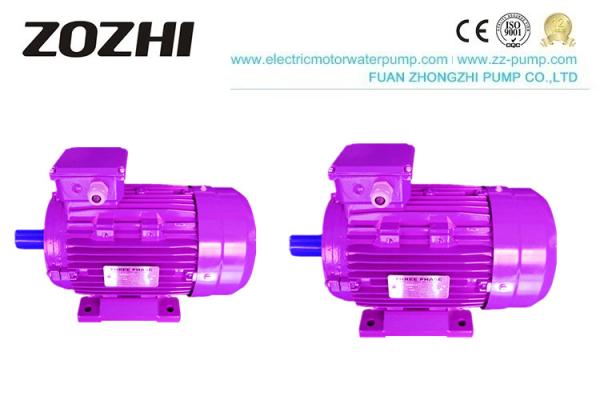

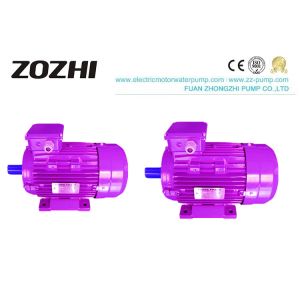

Ms Series 1HP 0.75kw Three Phase Electric Motor

Brand Name : ZOZHI

Model Number : MS802-4

Certification : ISO

Place of Origin : China

MOQ : 10PCS

Price : negotiated

Payment Terms : T/T, L/C, Western Union, E-checking

Supply Ability : 10000pcs/month

Delivery Time : 25 working days after received your payment

Packaging Details : Packed in cartons,veneer case or wooden case.

Output : 0.75KW/1HP

Pole : 4

Motor Bearing : C&U (SKF for Choice)

Efficiency : IE1 IE2 IE3

Motor Housing : Aluminum

Protection class : IP54/IP55

Insulation Class : F class

Color : customizable

Product Name : 3 Phase Induction Motor

Contact Now

Ms. Series Three Phase Induction Electric Motor 0.75kw/1HP

3 Phase Induction Motor

Frame and connection box material: grey cast iron
Standard color: stone grey(RAL7030)
Available in 2,4,6 pole variants with efficiency grade 2. according to GB18613-2006 and efficiency class IE2 according
Rated power range: 0.55kw-315kw at 50 Hz
Optimized compact style construction
Standard mounting construction according to IEC60034-7: IM B3, IM B5, IM B35, etc
All motors are designed to IP55 degree of protection (IEC60034-5)
Terminal box on top, and cable entry on the right side( viewed from the driven end). Variable location of connection boxes and cable entries as an option
The insulation system is designed for temperature class F. At rated output with the line-feed operation, the motors can be used in temperature class B
Self ventilated motors with radial-flow fans (cooling method IC 411 according to IEC 60034-6)as standard, forced air cool with external separately driven fans as an option
Degrees of motor protection IP55

Ms Series 1HP 0.75kw Three Phase Electric Motor

Ms Series 1HP 0.75kw Three Phase Electric Motor

Technical data

Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

 Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In
HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5

Ms Series 1HP 0.75kw Three Phase Electric Motor

Ms Series 1HP 0.75kw Three Phase Electric Motor

Ms Series 1HP 0.75kw Three Phase Electric Motor Ms Series 1HP 0.75kw Three Phase Electric Motor Ms Series 1HP 0.75kw Three Phase Electric Motor
Ms Series 1HP 0.75kw Three Phase Electric Motor Ms Series 1HP 0.75kw Three Phase Electric Motor Ms Series 1HP 0.75kw Three Phase Electric Motor
Ms Series 1HP 0.75kw Three Phase Electric Motor Ms Series 1HP 0.75kw Three Phase Electric Motor Ms Series 1HP 0.75kw Three Phase Electric Motor
