Round Flange Single Phase Induction Motor 1.5 Hp 110v 60hz Capacitor Running
Single Phase Induction Motor
Ambient temperature:-15℃≦0≦40℃
Protection:IP44/IP54/IP55
Insulation Class: B/F/H
Rated voltage:220V ~240V
Frequeny:50HZ/60HZ
Duty: S1(continuous)
Above sea level: not exceed 1000m
Cooling method: ICO141
MYT801-2 round flange 1.5Hp pool pump motor 110V 60HZ high energy efficiency, due to highly innovative motor technology, the self-priming circulation pump is revolutionizing energy consumption, operating costs, water quality, and lower CO2 emissions in swimming pools
| Model | Power | | Voltage(V) | Frequency (HZ) | Current (A) | Power Factor | Eff(%) | Speed (r/min) | Tstart/Tn | Tmax/Tn |
| HP | KW |
| MYT711-2 | 0.75 | 0.55 | 220 | 50 | 3.88 | 0.92 | 70 | 2800 | 0.35 | 1.7 |
| MYT712-2 | 1 | 0.75 | 5.15 | 0.92 | 72 | 2800 | 0.35 | 1.7 |
| MYT801-2 | 1.5 | 1.1 | 7.02 | 0.95 | 75 | 2800 | 0.33 | 1.7 |
| MYT802-2 | 2 | 1.5 | 9.44 | 0.95 | 76 | 2800 | 0.33 | 1.7 |
General data
| Frame size | 80 |
| Housing material | Aluminum |
| Install model | According to the standard |
| Type of feet | Removable feet |
| Net weight | 8.5 kg |
| Insulation class | FH(Standard)(Optional) |
| Protection degree | IP 55IP 56(Standard)(Optional) |
| Thermal protection | WithoutCustomizable(Standard)(Optional) |
| Rotation direction | ClockwiseCounter clockwise(Standard)(Optional) |
| Service duty | S1 |
| Vibration level | A |
| Balance | Half-key balanced |
| Cable glands | 1 - M20 × 1.5 |
| Cooling | IC 411 |
| Painting color | RAL 7024Customizable(Standard)(Optional) |
| Regulations | IEC / DIN / ISO / VDE / EN |
| Standard | IEC 60034 |
| Environmental conditions |
| Ambient temperature | From -20°C to +40°C |
| Maximum altitude | 1000 m above sea level |

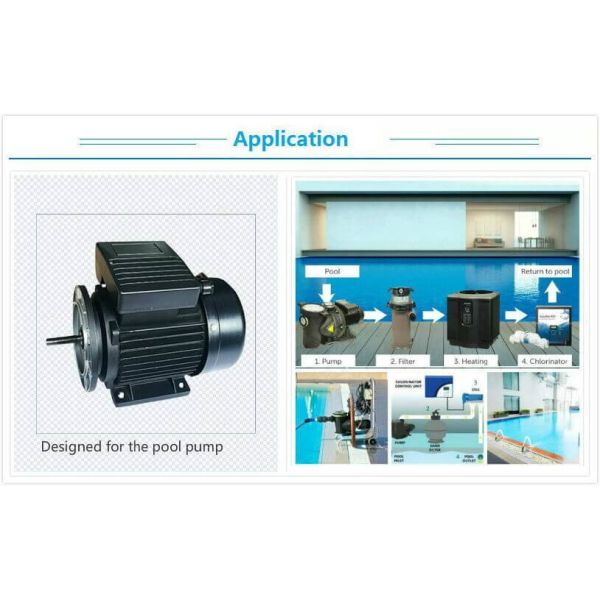

The quality motor with pool pump is a great choice for swimming pools, garden ponds, and spas, serving as a part of the circulation system to keep the water clean.
The see-through filter lid allows you to check whether the strainer filter is full, and you could easily take out the strainer basket from the pump for debris-tipping and cleaning. Thanks to the powerful engine, this pump is extremely robust and can work efficiently with little noise.
Guarantee
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our service
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
