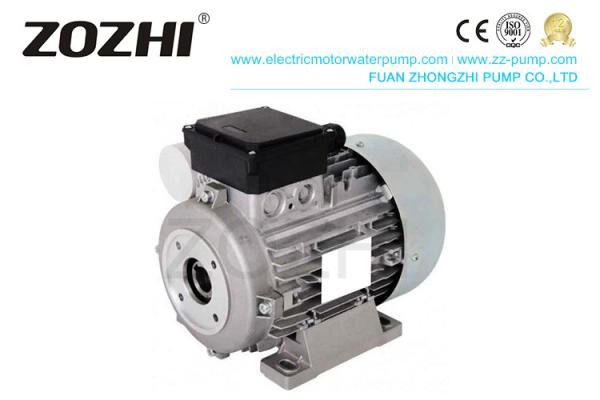

HS713-4 0.55KW 0.75HP Hollow Shaft Motor AC 3 Phase 415V 50HZ
Hollow Shaft Motor DESCRIPTION:
Hollow shaft motor adopts new materials, optimizes design, and saves cost. As a result, it is widely used in various automatic mechanical equipment, such as pressure pumps, supercharger equipment, etc.
Advantage:
1. high-quality magnetic materials, the output power is sufficient, slight current, low temperature, the heat dissipation is good, energy-saving.
2. high-quality bearings, rigorous assembly process, low noise.
3. Tailored for professional cleaning equipment, the shaft extension is subjected to high-frequency quenching treatment, which significantly improves the mechanical strength and seamlessly connects with the cleaning equipment to realize worry-free operation.
TECHNICAL DATA:
| Three-Phase 4 Poles 1500Rpm 50Hz |
| FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE |
| KW | H.P. | P.F. | | V | A |
| 711-4 | 0.25 | 0.35 | 1370 | 0.73 | 64 | 400 | 0.8 |
| 712-4 | 0.37 | 0.5 | 1350 | 0.74 | 68 | 400 | 1.1 |
| 713-4 | 0.55 | 0.75 | 1350 | 0.75 | 66 | 400 | 1.6 |
| 90L1-4 | 1.5 | 2 | 1400 | 0.82 | 78 | 400 | 3.4 |
| 90L2-4 | 2.2 | 3 | 1400 | 0.79 | 77 | 400 | 5.4 |
| 90L3-4 | 2.6 | 3.5 | 1400 | 0.80 | 78 | 400 | 7.4 |
| 100L1-4 | 2.2 | 3 | 1400 | 0.80 | 81 | 400 | 5.1 |
| 100L2-4 | 3 | 4 | 1410 | 0.80 | 81 | 400 | 6.9 |
| 100L3-4 | 4 | 5.5 | 1420 | 0.80 | 82 | 400 | 9.4 |
| 100M1-4 | 4.4 | 6 | 1420 | 0.82 | 83 | 400 | 10 |
| 112M1-4 | 4 | 5.5 | 1420 | 0.80 | 83 | 400 | 9 |
| 112M2-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 12.1 |
| 112M3-4 | 6.2 | 8.5 | 1425 | 0.82 | 84 | 400 | 13.5 |
| 112L-4 | 7 | 9.5 | 1430 | 0.80 | 85 | 400 | 13.8 |
| 132S1-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 11.7 |
| 132S2-4 | 7.5 | 10 | 1430 | 0.84 | 84 | 400 | 15.4 |
| 132M1-4 | 9.2 | 12.5 | 1430 | 0.90 | 85 | 400 | 17.8 |
| 132M2-4 | 11 | 15 | 1430 | 0.90 | 87 | 400 | 21.3 |
| 132M3-4 | 12.5 | 17 | 1430 | 0.88 | 84 | 400 | 26 |
| 160M1-4 | 15 | 20 | 1450 | 0.86 | 89 | 400 | 29 |
| 160M2-4 | 18.5 | 25 | 1450 | 0.86 | 90 | 400 | 34 |
CATALOG:
Hollow Shaft Motor APPLICATION:
H.S. series hollow shaft motor has a wide range of uses, such as a high-pressure pump for cleaners machine, pressure pump, gearbox, washing machines, and so on.
CONTRAST ADVANTAGE:
Higher transmission efficiency, lower noise, easier installation, simple maintenance, and low price. It is also more durable and has a longer service life.
OPERATING CONDITIONS:
1. Ambient temperature: -15℃≤θ≤60℃
2. Altitude: ≤1000m
3. Protection class: IP54
4. Insulation class: class F
5. Rated voltage: 220V, other voltage on request
6. Cooling type: IC 0141
7. Duty: Continuous(S1)
8. Rated frequency: 50HZ, other frequency on request
PRODUCE LINE PICTURE:
Hollow Shaft Motor GUARANTEE:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
OUR SERVICE:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making; also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What's' the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's' the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
